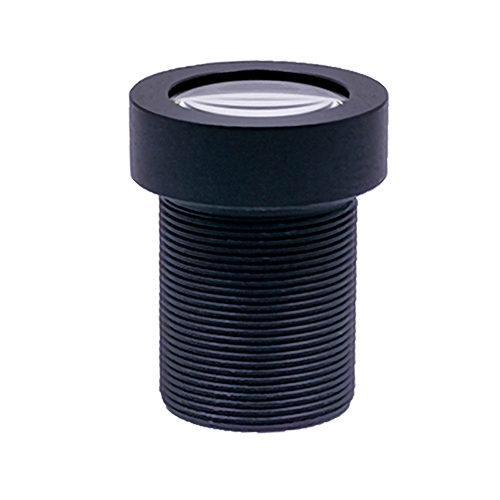

12mm 5MP 1/1.8-inch F2.8 S-Mount Low distortion FA Lens MTV12MP5C

FH至尊

12mm 5MP 1/1.8-inch F2.8 S-Mount Low distortion FA Lens MTV12MP5C: 1/1.8″S-Mount f=12mm 5MP; Low distortion,high contrast; Small volume,compact appearance; Convenient for M12/S-Mount cameras

Tel:+86 020-38312466

Specifications Dimension PDF download Other

5MP 12mm Low distortion S-Mount			Working Distance	Optical Magnification	1/1.8"Field of View(mm)
Model		MTV12MP5C	mm	-	H	V
Image Size		1/1.8-inch	850	0.014X	510	382.5
Focal length		12mm	800	0.015X	480	360
F?No.		F2.8	750	0.016X	450	337.5
M.O.D(m)		0.1-Inf.	700	0.017X	420	315
Operation	Iris	Fix	650	0.019X	390.1	292.5
Operation	Focus	Manual	600	0.020X	360.1	270.1
Angle of View (D×H×V)	1/1.8"	40.7°×33°×24.8°	550	0.022X	330.1	247.6
Angle of View (D×H×V)	1/3"	27.8°×22.4°×16.9°	500	0.024X	300.1	225.1
Distortion	<0.1%		450	0.027X	270.2	202.6
BFL	8.05mm		400	0.030X	240.3	180.2
Mount	M12XP0.5		350	0.034X	210.3	157.7
Object Dimension(mm)	180.3×135.2 (WD=300mm)		300	0.040X	180.3	135.2
Resolusion	5MP		250	0.048X	150.3	112.7
Dimension	Φ15.4×14.37mm		200	0.060X	120.3	90.2
Weight	7g		150	0.080X	90.3	67.7
Working Temperature	-20?C ～ +60?C		100	0.120X	60.2	45.2

Product Features
◆ Brand：ZLKC
◆ Image Size：1/1.8″ S-mount
◆ Focal length：f=12mm
◆ F No.：F2.8
◆ Features：S-Mount lens 12mm 5MP 1/1.8" Low distortion FA Lens

Model
MTV12MP5C

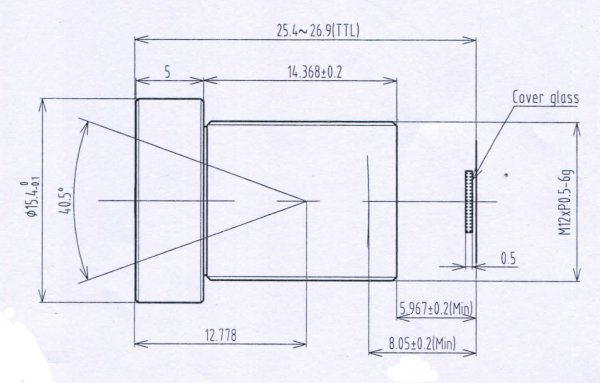

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in M12/S-Mount camera. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
