12MP FA Lens HK0618MP12 6mm Low distortion Lens 1-inch F2.0 C-Mount

FH至尊

12MP FA Lens HK0618MP12 6mm Low distortion Lens 1-inch F2.0 C-Mount: 1″ C-Mount f=6mm F1.8; High resolution,wavelength 420-1000nm; high contrast,Can suppress stray light; Low distortion -2.3% or less; Locking set screws for focus and Iris; compact appearance for device integration

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		HK0618MP12
Image Size		1.1-inch
Focal length		6mm
F?No.		F1.8-16
M.O.D(m)		0.1-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1"Type	107.5°×95.4°×78.4°
	2/3"Type	86.6°×73.3°×57.5°
Distortion		-2.3%
Back?focal?length		13.57mm
Flange BFL		17.526mm
Mount		C-Mount
1"FOV		257.0mm×192.7mm(WD=100mm)
Dimension		Ф66x77.8mm
Weight		210.0g
Horizontal Resolution		180lp/mm
Working Temperature		-20?C ～ +60?C

Product Features
◆ Brand：ZLKC
◆ Image Size：1.1″ C-mount
◆ Focal length：f=6mm
◆ F No.：F1.8-16
◆ Features：1.1-inch FA Lens 6mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

Model
HK0618MP12

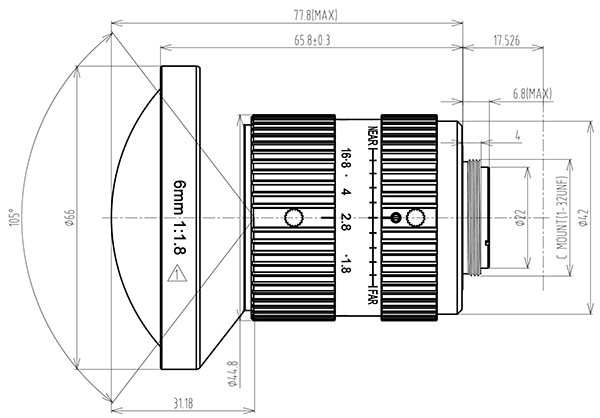

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
