1″ C Mount f=35mm F1.4
High resolution ,excellent image uniformity
high contrast,Can suppress stray light
Low distortion,High measurement accuracy
Locking set screws for focus and Iris
compact appearance for device integration
Contact
|
Model |
HK3514MP5 |
|
|
Image Size |
1-inch |
|
|
Focal length |
35mm |
|
|
F1.4-22 |
||
|
M.O.D(m) |
0.35-Inf. |
|
|
Operation |
Iris |
Manual |
|
Focus |
Manual |
|
|
Horizontal Angle of View |
1"Type |
25.8°×20.6°×15.5° |
|
2/3"Type |
17.7°×14.2°×10.6° |
|
|
1/2"Type |
13.1°×10.4°×7.8° |
|
|
Distortion |
1"Type |
0.2% |
|
1/2"Type |
-0.02% |
|
|
Back?focal?length |
12.83mm |
|
|
Mount |
C-Mount |
|
|
1"FOV |
141.6mm×106.3mm(WD=1000mm) |
|
|

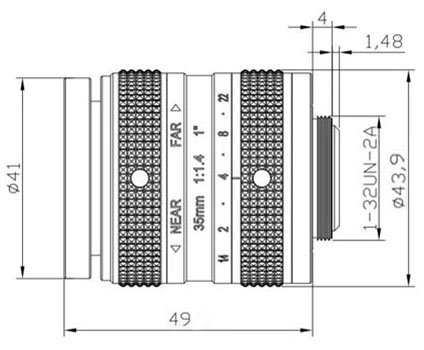

Dimension |
Ф41x49mm |
|
|
Weight |
156.0g |
|
|
Horizontal Resolution |
150lp/mm |
|
|
Filter Thread |
M39x0.5 |
|
|
Working Temperature |
-20?C ～ +60?C |
|
Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
