ZLKC Lens VM08050MP3 8-50mm 3Megapixel Manual Iris Lens, 1/2.5” Vari-focal HD Lens ?FA Lens C Mount: 1/2.5″C-Mount 8-50mm; Manual Iris Lens; Optical glass material; Locking set screws for focus and zoom; Metal structure，compact appearance

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		VM08050MP3
Image Size		1/2.5-inch
Focal length		8-50mm
F?No.		F1.4-C
M.O.D(m)		0.2m
Operation	Iris	Manual
	Focus	Manual
	Zoom	Manual
Distortion	1/2.5"Type	-7%@wide
	1/3"Type	-5%@wide
Horizontal Angle of View	1/2.5"Type	45°×5.4°
Mount		C-Mount
Dimension		Ф40x68.3mm
Weight		249.0g
Remark		3MP HD CCTV LENS

Product Features
◆ Brand：ZLKC
◆ Image Size：1/2.5″ C-mount
◆ Focal length：f=8-50mm
◆ F No.：F1.4-C
◆ Features：1/2.5" 8-50mm 3 Megapixel Manual Iris Lens Vari-focal? Lens C Mount HD Lens

Model
VM08050MPC

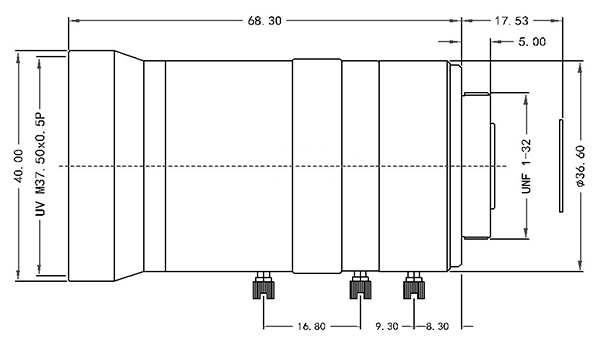

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on

VM08050MP3 specification
