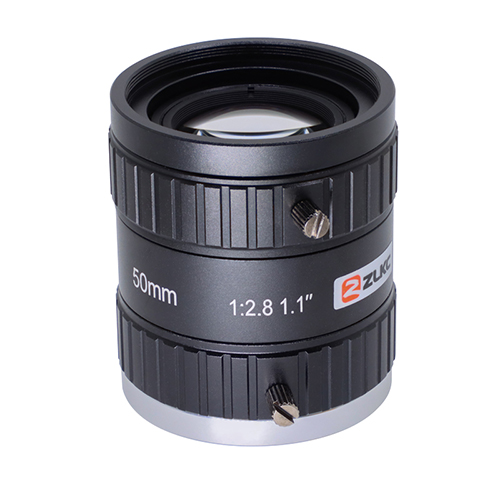

      20MP Large Format Lens FK5028MP20 Sensor 1.1-inch 50mm F2.8 C-Mount
      1.1″ C-Mount f=50mm F2.8
      Low distortion,wavelength 420-1000nm
      high contrast,Can suppress stray light
      Locking set screws for focus and Iris
      Compact & Light weight

      Model

      FK5028MP20

      Image Size

      1.1-inch

      Focal length

      50mm

      F?No.

      F2.8-22

      M.O.D(m)

      0.25-Inf.

      Operation

      Iris

      Manual

      Focus

      Manual

      Horizontal Angle of View

      1.1"? Type

      20.0°×16.0°×12.0°

      1"Type

      18.4°×14.7°×11.0°

      1/2"Type

      9.3°7.4°×5.5°

      1/3"Type

      7.0°×5.5°×4.2°

      Distortion

      -0.05%@y=8.8㎜;-0.01%@y=4㎜

      Flange BFL

      17.526mm

      Back?focal?length

      21.3mm

      Mount

      C-Mount

      1.1"FOV

      63.44mm×47.58mm(WD=250mm)

      Dimension

      Ф41.4x48.3mm

      Weight

      128.0g

      Filter Thread

      M37x 0.5mm

      Working Temperature

      -20?C ～ +60?C

      ?Product Features
      ◆?Brand：ZLKC?
      ◆ Image Size：1.1″ C-mount
      ◆ Focal length：f=50mm?
      ◆ F No.：F2.8-22
      ◆ Features：1.1-inch Large Format Lens 50mm C Mount 20MP Manual Iris Lens

      ?Model
      FK5028MP20

      ?Dimension


      ?Industries Application
      These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
