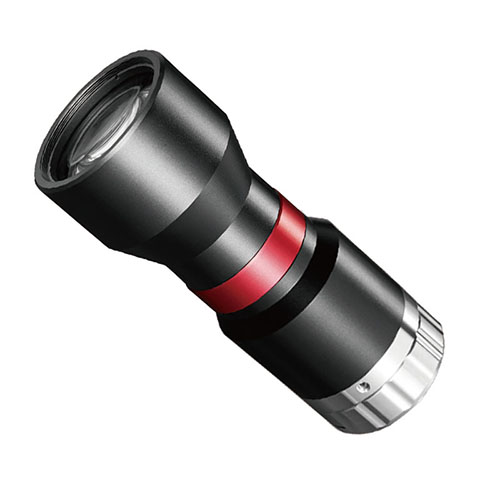

ZLKC megapixel Telecentric lens FK07X73T 0.708x 73mm: 1.1″ C-Mount 0.708x; Megapixels high-resolution telecentric lens; supporting working distance 65mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		FK07X73T
Max Image Size		1.1-inch
Magnification		0.7X
?WD (mm)		73
Working F/#		9.6
MTF30 (lp/mm)		>75
Depth of field(mm)		±1.6@F20
Distortion		<0.1%
Resolution		16.2μ
FOV（WxH）(mm)	1.1" IMX253 (14.19x10.38)	20.0x14.7
	1" IMX183 (13.13x8.76)	18.5x12.4
(° max)		<0.1°
Mount		C-Mount
TTL		147.7mm

Product Features
◆ Brand：ZLKC
◆ Image Size：1.1″ C-mount
◆ Magnification：0.708x
◆ WD：73mm
◆ Features：High Mag Telecentric Lens C-Mount 0.708x instant measurement lens

Model
FK07X73T

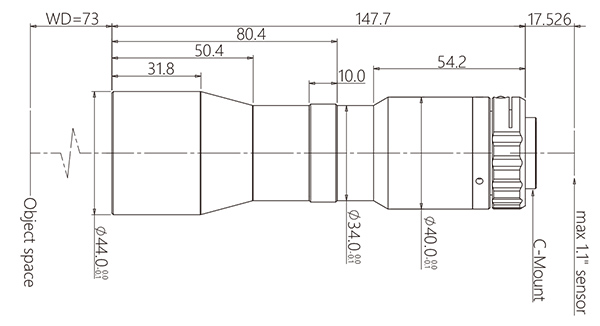

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
