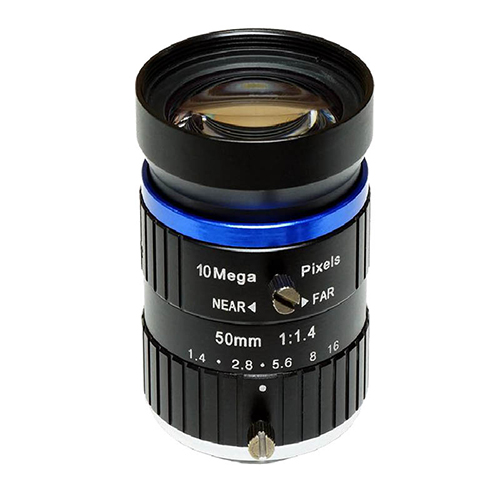

      1-inch FA Lens HM5014MPC 50mm 8MP C-Mount
      1″ C Mount f=50mm F1.4
      High resolution ,excellent image uniformity
      high contrast,Can suppress stray light
      Low distortion,High measurement accuracy
      Locking set screws for focus and Iris
      compact appearance for device integration

      Model

      HM5014MPC

      Image Size

      1-inch

      Focal length

      50mm

      F No.

      F1.4-16

      M.O.D(m)

      0.3m-Inf.

      Operation

      Iris

      Manual

      Focus

      Manual

      Horizontal Angle of View

      1" Type

      14.5°x10.8°

      2/3"Type

      10.0°x7.5°

      1/1.8"Type

      8.2°x6.2°

      Mount

      C-Mount

      TV Distortion

      -0.25%

      Dimension

      Ф39x52mm

      Weight

      118.0g

      Filter

      M37 P=0.75mm

      Remark

      8MP HD LENS

      Product Features
      ◆ Brand：ZLKC
      ◆ Image Size：1″ C-mount
      ◆ Focal length：f=50mm
      ◆ F No.：F1.4
      ◆ Features：1-inch 50mm 8MP Manual Iris Lens,? F1.4 Fixed focus Lens C Mount HD Lens

      Model
      HM5014MPC

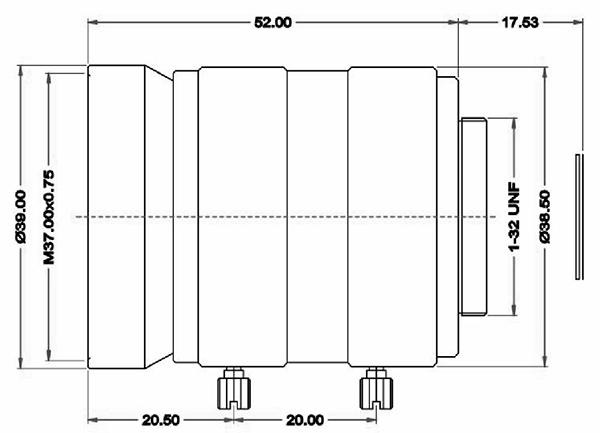

      Dimension
      FH至尊(中国)有限公司官网

      Industries Application
      These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
      FH至尊(中国)有限公司官网HM5014MPC Specifications
