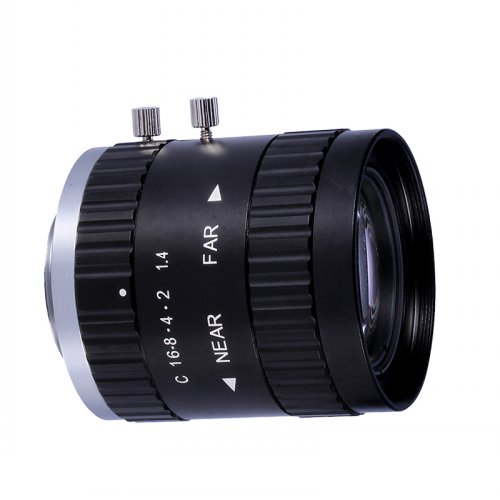

5MP FA Lens HM0814MP5 8mm Low distortion Lens 2/3-inch F1.4 C-Mount

FH至尊

5MP FA Lens HM0814MP5 8mm Low distortion Lens 2/3-inch F1.4 C-Mount: 2/3″C-Mount f=8mm 5MP; F1.4, Maximum image circle of 2/3"; High resolution ,excellent image uniformity; high contrast,high peripheral brightness ratio; Low distortion,high measurement accuracy; Easy device integration with compact structure

Tel:+86 020-38312466

Specifications Dimension PDF download Other

5MP 8mm Low distortion FA Lens C Mount			Working Distance	Magnification	2/3"Field of View(mm)
Model		HM0814MP5	mm	-	H	V
Image Size		2/3-inch	900	0.009X	976.8	731.5
Focal length		8mm	850	0.010X	923.3	691.4
F?No.		F1.4-16	800	0.010X	869.8	651.3
M.O.D(m)		0.1-Inf.	750	0.011X	816.3	611.2
Operation	Iris	Manual	700	0.012X	762.8	571.1
Operation	Focus	Manual	650	0.013X	709.3	531.0
Angle of View (D×H×V)	2/3"	66.8°×55.8°×43.3°	600	0.014X	655.8	490.9
Angle of View (D×H×V)	1/2"	53.1°×42.5°×32.4°	550	0.015X	602.3	450.8
Distortion		<0.2%	500	0.016X	548.8	410.7
BFL		10.74mm	450	0.018X	495.3	370.6
Mount		C-Mount	400	0.020X	441.8	330.5
Object Dimension		334.8mm×250.3mm(WD=300mm)	350	0.023X	388.3	290.4
Dimension		Φ39×40mm	300	0.027X	334.8	250.3
Weight		115.0g	250	0.032X	281.2	210.2
Horizontal Resolution		5MP	200	0.039X	227.7	170.0
Filter Thread		M37x 0.5	150	0.052X	174.2	129.9
Working Temperature		-20?C ～ +60?C	100	0.075X	120.7	89.8

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=8mm
◆ F No.：F1.4-16
◆ Features：2/3-inch 8mm F1.4 Manual Iris Lens Low distortion Lens C Mount FA Lens

Model
HM0814MP5

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
