5MP FA Lens HM0616MP5 6mm Low distortion Lens 2/3-inch F1.6 C-Mount

FH至尊

5MP FA Lens HM0616MP5 6mm Low distortion Lens 2/3-inch F1.6 C-Mount: 2/3″C-Mount f=6mm 5MP; F1.6, Maximum image circle of 2/3"; High resolution ,excellent image uniformity; high contrast,high peripheral brightness ratio; Low distortion,high measurement accuracy; Easy device integration with compact structure

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		HM0616MP5
Image Size		2/3-inch
Focal length		6mm
F?No.		F1.6-16
M.O.D(m)		0.1-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View?(D×H×V)	2/3"Type	82.2°×73°×58.2°
	1/2"Type	68°×57°×44°
Distortion	2/3"Type	-1.8%
	1/2"Type	-1.5%
Back?focal?length		12.1mm
Mount		C-Mount
Dimension		Φ37×37mm
Weight		89.0g
Horizontal Resolution		5MP
Filter Thread		M36x 0.5
Working Temperature		-20?C ～ +60?C

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=6mm
◆ F No.：F1.6-16
◆ Features：2/3-inch 6mm F1.6 Manual Iris Lens Low distortion Lens C Mount FA Lens

Model
HM0616MP5

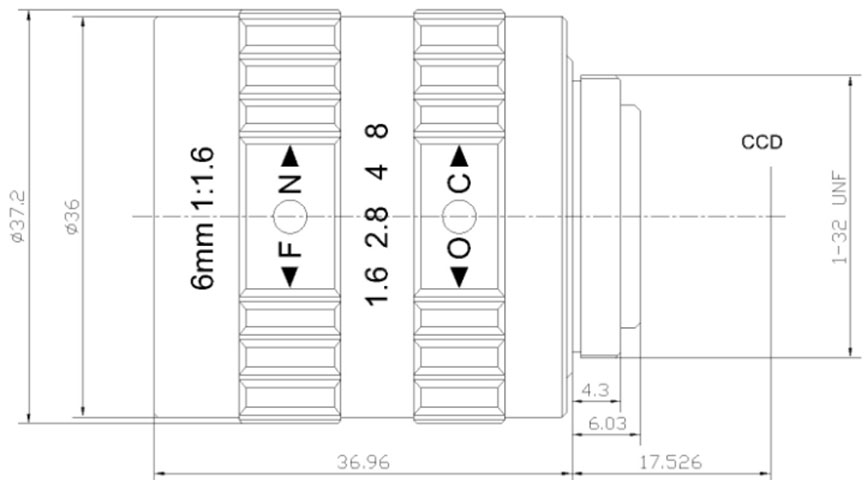

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
