ITS Lens KM3514MP8 35mm 8Megapixel Manual Iris Lens, 1-inch F1.4 Fixed focus Lens C Mount CCTV Lens: C-Mount f=35mm F1.4; Maximum image circle of 1" (φ16mm); High resolution ,excellent image uniformity; high contrast,high peripheral brightness ratio; Low distortion,compact appearance; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		KM3514MP8
Image Size		1-inch
Focal length		35mm
F?No.		F1.4-C
M.O.D(m)		0.4
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	25.9°×20.6°×15.5°
	2/3"Type	17.9°×14.3°×10.7°
	1/2"Type	13.2°×10.1°×7.9°
Distortion	1" Type	-2.3%
Back?focal?length		12.5mm
Flange BFL		17.526mm
Mount		C-Mount
Dimension		Ф38x49.2mm
Weight		195.0g
Horizontal Resolution		160lp/mm
Remark		8MP ITS lens

Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Focal length：f=35mm
◆ F No.：F1.4-C
◆ Features：1-inch ITS Lens 35mm 8MP Manual Iris Lens,? F1.4 Fixed focus Lens C Mount HD Lens

Model
KM3514MP8

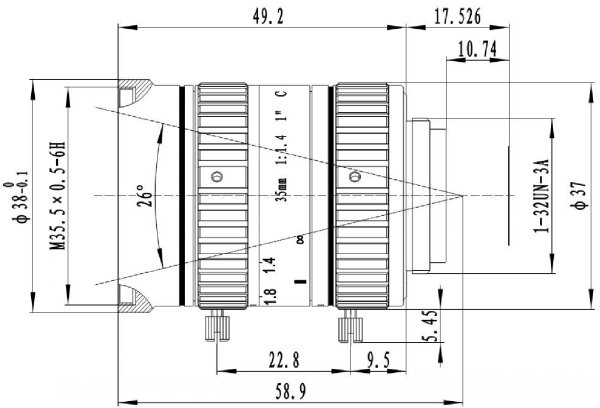

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on
