ITS Lens KM0814MP8 8mm 8Megapixel Manual Iris Lens, 1-inch F1.4 Fixed focus Lens C Mount CCTV Lens: C-Mount f=8mm F1.4; Maximum image circle of 1" (φ16mm); High resolution ,excellent image uniformity; high contrast,high peripheral brightness ratio; Low distortion,compact appearance; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		KM0814MP8
Image Size		1-inch
Focal length		8mm
F?No.		F1.4-C
M.O.D(m)		0.3
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View D×H×V(°)	1" Type	95.9°×84.0°×68.1°
	2/3"Type	72.1°×60.5°×48.3°
Distortion	1" Type	-3.8%
Back?focal?length		10.5mm
Flange BFL		17.526mm
Mount		C-Mount
Dimension		Ф67x67mm
Weight		313.0g
Horizontal Resolution		160lp/mm
Remark		8MP ITS lens

Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Focal length：f=8mm
◆ F No.：F1.4-C
◆ Features：1-inch ITS Lens 8mm 8MP Manual Iris Lens,? F1.4 Fixed focus Lens C Mount HD Lens

Model
KM0814MP8

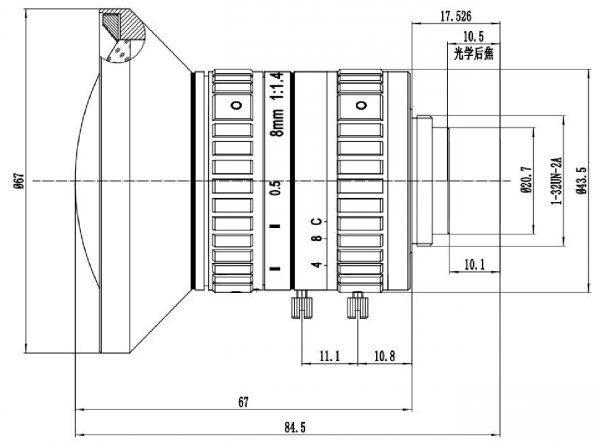

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on
